SABS Specification 949-1997 for Strongroom Doors.
CATEGORY 1 STRONG ROOM DOOR
This strongroom door embodies the most up-to-date features that protects the lock and vital parts.
The high security keylock secures four sliding steel bolts at the front edge of the door with fixed bolts at the back.
Left or Right Hinged can be specified.
Inward or Outward Opening can be specified.
| Wall Opening: | 1930mm (h) x 880mm (w) |
| Clear Opening (Door open to 180°): | 1880mm (h) x 790mm (w) |
| Clear Opening (Door open to 90°): | 715mm |
| Over Door Frame: | 1980mm (h) x 990mm (w) |
| Overall Width of Door & Frame (Door open to 180°) | 1800mm |
| Projection of Door open to 90° | 875mm |
| Projection of Door open to 180° | 145mm |
| Mass: | 352kg approximately |
| Standard Locking: | 1 x Keylocks |
| Outer Door Plate: | 10mm |

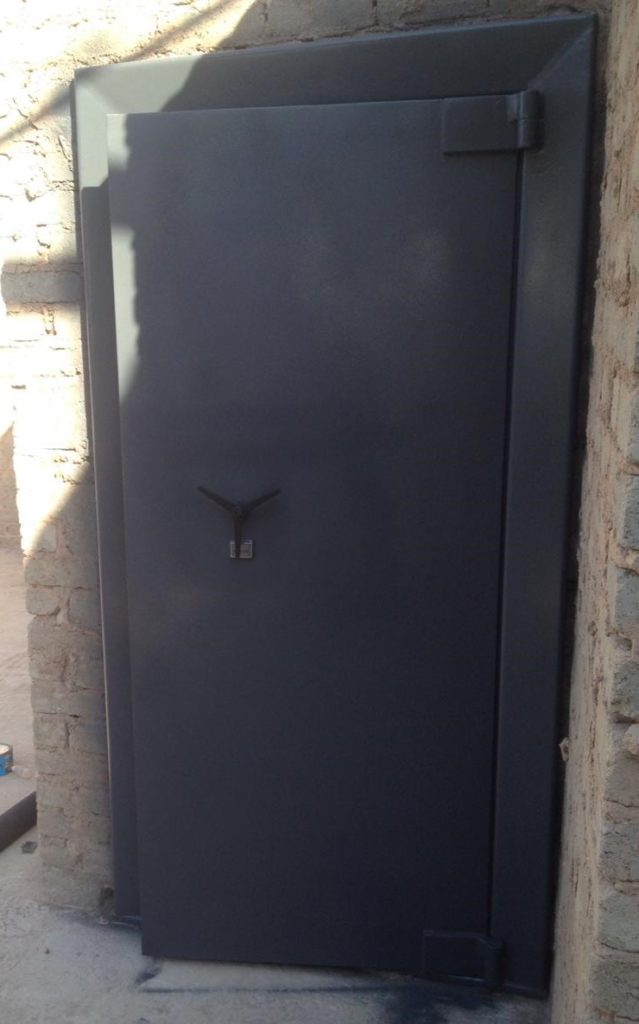

CATEGORY 2 LIGHT DUTY STRONG ROOM DOOR
This strong room door is of heavier construction that the Cat 1, embodying the most rigidly tested features. These features include a remote relocking device protecting against explosives and other attacks.
Two locks secure four sliding bolts at the front edge of the door with fixed bolts at the back.
Left or Right Hinged can be specified.
Inward or Outward Opening can be specified.
| Wall Opening: | 1930mm (h) x 880mm (w) |
| Clear Opening (Door open to 180°): | 1880mm (h) x 790mm (w) |
| Clear Opening (Door open to 90°): | 715mm |
| Over Door Frame: | 1980mm (h) x 990mm (w) |
| Overall Width of Door & Frame (Door open to 180°) | 1800mm |
| Projection of Door open to 90° | 875mm |
| Projection of Door open to 180° | 145mm |
| Mass: | 380kg approximately |
| Standard Locking: | 2 x Keylocks |
| Outer Door Plate: | 12mm |
CATEGORY 2 HEAVY DUTY STRONG ROOM DOOR
This strong room door far exceeds the SABS Category Two specifications. A remote re-locking device is provided to protect against explosives and other attacks. Six sliding steel bolts are provided at the front edge with fixed bolts at the back.
Left or Right Hinged can be specified. Inward or Outward Opening can be specified.
| Wall Opening: | 1930mm (h) x 880mm (w) |
| Clear Opening (Door open to 180°): | 1880mm (h) x 790mm (w) |
| Clear Opening (Door open to 90°): | 715mm |
| Over Door Frame: | 2020mm (h) x 1030mm (w) |
| Overall Width of Door & Frame (Door open to 180°) | 1800mm |
| Projection of Door open to 90° | 875mm |
| Projection of Door open to 180° | 145mm |
| Mass: | 540kg approximately |
| Standard Locking: | 2 x Keylocks |
| Outer Door Plate: | 20mm |
CATEGORY 2 ADM STRONG ROOM DOOR
This strong room door is specifically designed to give protection against attacks by disc grinders and explosives.
Overall door thickness is in excess of 160mm and locks and other vital parts are protected by barrier material and solid steel.
Two keylocks secure six sliding bolts at the front edge of the door with fixed bolts at the back. A combination lock can be fitted as an optional extra.
Left or Right Hinged can be specified. Inward or Outward Opening can be specified.
| Wall Opening: | 1960mm (h) x 940mm (w) |
| Clear Opening (Door open to 180°): | 1880mm (h) x 790mm (w) |
| Clear Opening (Door open to 90°): | 710mm |
| Over Door Frame: | 2030mm (h) x 1085mm (w) |
| Overall Width of Door & Frame (Door open to 180°) | 1950mm |
| Projection of Door open to 90° | 950mm |
| Projection of Door open to 180° | 210mm |
| Mass: | 716kg approximately |
| Standard Locking: | 2 x Keylocks |
| Outer Door Plate: | 80mm |
